Aplus produce full serial clinch clip product.
Those are include M66, M46, HR85, M65, M45 model number.
|

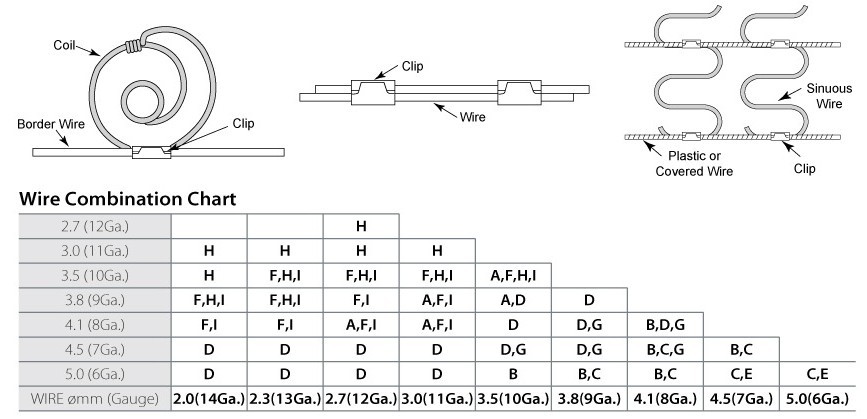

Application:
- Furniture, Bedding,
- Ticking (Flange) to Innerspring,
- Novelty,
- Components
|
| |
|

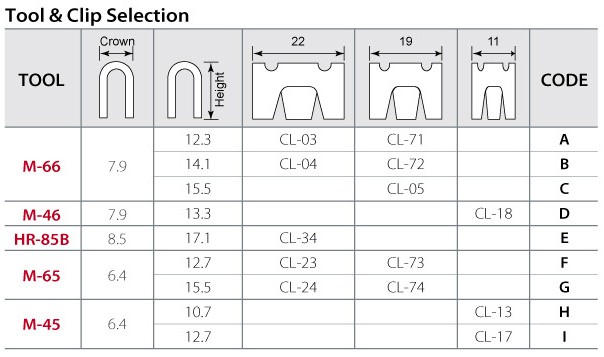

Nail specification
| |
Crown (mm)
|
Width (mm)
|
Height (mm)
|
| M-66 |
7.9 |
19-22 |
12.5 -15.5 |
| M-46 |
7.9 |
11 |
13.3 |
| HR-85B |
8.5 |
22 |
17.1 |
| M-65 |
6.4 |
19 - 22 |
12.7 - 15.5 |
| M-45 |
6.4 |
11 |
10.7 - 12.7 |

|
|
Tool specification
|
Dimensions
(mm) (HxWxL)
|
Load Capacity
(pcs)
|
Weight
(kg)
|
Driving Power
(7kg/cm2)
|
| 200 x 95 x 450 |
50 |
3 |
|
|
|
|
